English Units
Nom.					Nom.					Nom.					Nom.

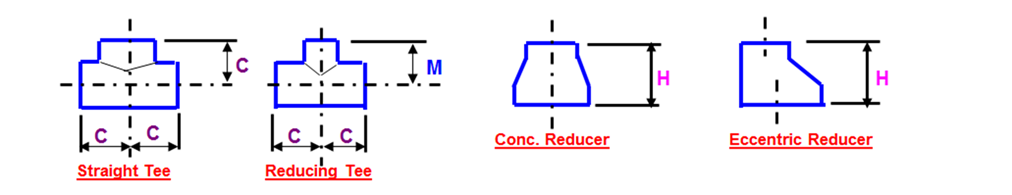

Pipe	Outlet	C	M	H	Pipe	Outlet	C	M	H	Pipe	Outlet	C	M	H	Pipe	Outlet	C	M	H
Size					Size					Size					Size
IN	IN	IN	IN	IN	IN	IN	IN	IN	IN	IN	IN	IN	IN	IN	IN	IN	IN	IN	IN
3/4	3/4	1 1/8			3 1/2	3 1/2	3 3/4			10	10	8 1/2			20	20	15
3/4	1/2	1 1/8	1 1/8	1 1/2	|	3	3 3/4	3 5/8	4	|	8	8 1/2	8	7	|	18	15	14 1/2	20
1	1	1 1/2			|	2 1/2	3 3/4	3 1/2	4	|	6	8 1/2	7 5/8	7	|	16	15	14	20
1	3/4	1 1/2	1 1/2	2	|	2	3 3/4	3 1/4	4	|	5	8 1/2	7 1/2	7	|	14	15	14	20
1	1/2	1 1/2	1 1/2	2	3 1/2	1 1/2	3 3/4	3 1/8	4	10	4	8 1/2	7 1/4	7	|	12	15	13 5/8	20
1 1/4	1 1/4	1 7/8			4	4	4 1/8			12	12	10			|	10	15	13 1/8	20
|	1	1 7/8	1 7/8	2	|	3 1/2	4 1/8	4	4	|	10	10	9 1/2	8	20	8	15	12 3/4	20
|	3/4	1 7/8	1 7/8	2	|	3	4 1/8	3 7/8	4	|	8	10	9	8	24	24	17
1 1/4	1/2	1 7/8	1 7/8	2	|	2 1/2	4 1/8	3 3/4	4	|	6	10	8 5/8	8	|	20	17	17	20
1 1/2	1 1/2	2 1/4			|	2	4 1/8	3 1/2	4	12	5	10	8 1/2	8	|	18	17	16 1/2	20
|	1 1/4	2 1/4	2 1/4	2 1/2	4	1 1/2	4 1/8	3 3/8	4	14	14	11			|	16	17	16	20
|	1	2 1/4	2 1/4	2 1/2	5	5	4 7/8			|	12	11	10 5/8	13	|	14	17	16	20
|	3/4	2 1/4	2 1/4	2 1/2	|	4	4 7/8	4 5/8	5	|	10	11	10 1/8	13	|	12	17	15 5/8	20
1 1/2	1/2	2 1/4	2 1/4	2 1/2	|	3 1/2	4 7/8	4 1/2	5	|	8	11	9 3/4	13	24	10	17	15 1/8	20
2	2	2 1/2			|	3	4 7/8	4 3/8	5	14	6	11	9 3/8	13	30	30	22
|	1 1/2	2 1/2	2 3/8	3	|	2 1/2	4 7/8	4 1/4	5	16	16	12			|	24	22	21	24
|	1 1/4	2 1/2	2 1/4	3	5	2	4 7/8	4 1/8	5	|	14	12	12	14	|	20	22	20	24
|	1	2 1/2	2	3	6	6	5 5/8			|	12	12	11 5/8	14	|	18	22	19 1/2	24
2	3/4	2 1/2	1 3/4	3	|	5	5 5/8	5 3/8	5 1/2	|	10	12	11 1/8	14	|	16	22	19	24
2 1/2	2 1/2	3			|	4	5 5/8	5 1/8	5 1/2	|	8	12	10 3/4	14	30	14	22	19	24
|	2	3	2 3/4	3 1/2	|	3 1/2	5 5/8	5	5 1/2	16	6	12	10 3/8	14	36	36	26 1/2
|	1 1/2	3	2 5/8	3 1/2	|	3	5 5/8	4 7/8	5 1/2	18	18	13 1/2			|	30	26 1/2	25	24
|	1 1/4	3	2 1/2	3 1/2	6	2 1/2	5 5/8	4 3/4	5 1/2	|	16	13 1/2	13	15	|	24	26 1/2	24	24
2 1/2	1	3	2 1/4	3 1/2	8	8	7			|	14	13 1/2	13	15	|	20	26 1/2	23	24
3	3	3 3/8			|	6	7	6 5/8	6	|	12	13 1/2	12 5/8	15	|	18	26 1/2	22 1/2	24
|	2 1/2	3 3/8	3 1/4	3 1/2	|	5	7	6 3/8	6	|	10	13 1/2	12 1/8	15	36	16	26 1/2	22	24
|	2	3 3/8	3	3 1/2	|	4	7	6 1/8	6	18	8	13 1/2	11 3/4	15	42	42	30	28
|	1 1/2	3 3/8	2 7/8	3 1/2	8	3 1/2	7	6	6						|	36	30	28	24
3	1 1/4	3 3/8	2 3/4	3 1/2											|	30	30	28	24
															|	24	30	26	24
															42	20	30	26	24
															48	48	35	33
															|	42	35	32	28
															|	36	35	31	28
															48	30	35	30	28
	Metric Units
Nom.					Nom.					Nom.					Nom.

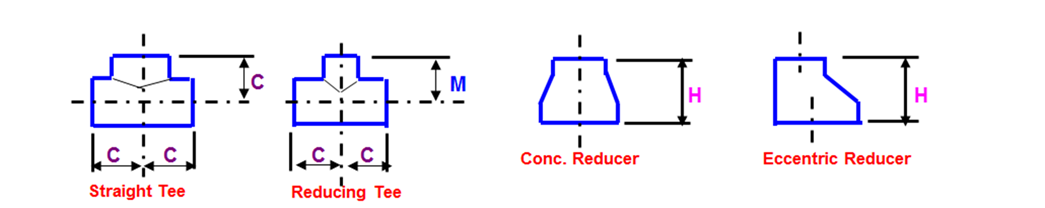

Pipe	Outlet	C	M	H	Pipe	Outlet	C	M	H	Pipe	Outlet	C	M	H	Pipe	Outlet	C	M	H
Size					Size					Size					Size
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
19	19	29			89	89	95			254	254	216			508	508	381
19	13	29	29	38	|	76	95	92	102	|	203	216	203	178	|	457	381	368	508
25	25	38			|	64	95	89	102	|	152	216	194	178	|	406	381	356	508
25	19	38	38	51	|	51	95	83	102	|	127	216	191	178	|	356	381	356	508
25	13	38	38	51	89	38	95	79	102	254	102	216	184	178	|	305	381	346	508
32	32	48			102	102	105			305	305	254			|	254	381	333	508
|	25	48	48	51	|	89	105	102	102	|	254	254	241	203	508	203	381	324	508
|	19	48	48	51	|	76	105	98	102	|	203	254	229	203	610	610	432
32	13	48	48	51	|	64	105	95	102	|	152	254	219	203	|	508	432	432	508
38	38	57			|	51	105	89	102	305	127	254	216	203	|	457	432	419	508
|	32	57	57	64	102	38	105	86	102	356	356	279			|	406	432	406	508
|	25	57	57	64	127	127	124			|	305	279	270	330	|	356	432	406	508
|	19	57	57	64	|	102	124	117	127	|	254	279	257	330	|	305	432	397	508
38	13	57	57	64	|	89	124	114	127	|	203	279	248	330	610	254	432	384	508
51	51	64			|	76	124	111	127	356	152	279	238	330	762	762	559
|	38	64	60	76	|	64	124	108	127	406	406	305			|	610	559	533	610
|	32	64	57	76	127	51	124	105	127	|	356	305	305	356	|	508	559	508	610
|	25	64	51	76	152	152	143			|	305	305	295	356	|	457	559	495	610
51	19	64	44	76	|	127	143	137	140	|	254	305	283	356	|	406	559	483	610
64	64	76			|	102	143	130	140	|	203	305	273	356	762	356	559	483	610
|	51	76	70	89	|	89	143	127	140	406	152	305	264	356	914	914	673
|	38	76	67	89	|	76	143	124	140	457	457	343			|	762	673	635	610
|	32	76	64	89	152	64	143	121	140	|	406	343	330	381	|	610	673	610	610
64	25	76	57	89	203	203	178			|	356	343	330	381	|	508	673	584	610
76	76	86			|	152	178	168	152	|	305	343	321	381	|	457	673	572	610
|	64	86	83	89	|	127	178	162	152	|	254	343	308	381	914	406	673	559	610
|	51	86	76	89	|	102	178	156	152	457	203	343	298	381	1067	1067	762	711
|	38	86	73	89	203	89	178	152	152						|	914	762	711	610
76	32	86	70	89											|	762	762	711	610
															|	610	762	660	610
															1067	508	762	660	610
															1219	1219	889	838
															|	1067	889	813	711
															|	914	889	787	711
															1219	762	889	762	711
